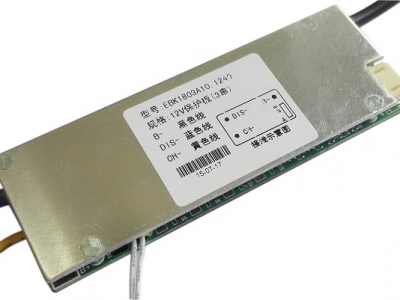

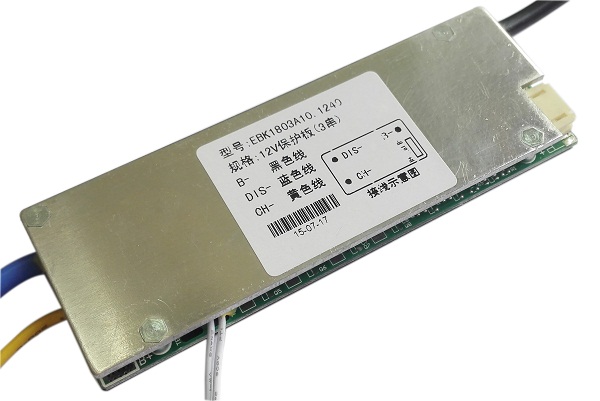

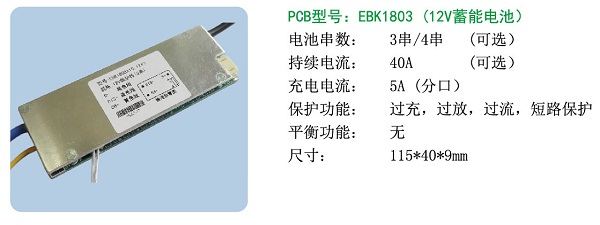

Item

項目

Symbol

符號

Content

詳細內容

Criterion

標準

Over charge 1^st Protection

過充保護

VCU1

Over charge 1^st detection voltage

1級過充電檢測電壓

4.275±0.025V

tCU1

Over charge 1^st detection delay time

1級過充電檢測延遲時間

1±0.3S

VCL1

Over charge 1^st release voltage
1級過充電解除電壓

4.175±0.05V

Over discharge protection

過放保護

VDL

Over discharge detection voltage

過放電檢測電壓

2.30±0.10V

tDL

Over discharge detection delay time
過放電檢測延遲時間

0.10±0.05s

VDU

Over discharge release voltage
過放電解除電壓

2.4±0.10V

1^st Over current protection

一級過流保護

IDIOV1

Over current detection current 1

過電流檢測電流 1

160A±15A

tDIOV1

Overcurrent detection delay time 1

過電流保護延時1

9±5mS

2^nd Over current protection

二級過流保護

IDIOV2

Over current detection current 2

過電流檢測電流 2

800±80A

tDIOV2

Overcurrent detection delay time2

過電流保護延時2

2±0.5ms

Short current protection

短路保護

ISHORT

Short circuit detection current

短路保護檢測電流

1920±480A

tSHORT

Short circuit delay time

短路保護延時

100-600uS

Over current release

過流恢復

/

Over current & short current release

過流及短路保護恢復

Load disconnection

Balance function

平衡功能

VBAL

Balance detection/ release voltage

平衡動作/恢復電壓

/

Continue Current

持續(xù)工作電流

ICHG

Continue charge current

持續(xù)充電電流

Max.5A

IDIS

Continue discharge current

持續(xù)放電電流

Max.40A

Internal resistance

保護板內阻

RCHG

Resistance in charge 充電回路內阻

<80 mohm

RDIS

Resistance in discharge 充電回路內阻

<20 mohm

Current consumption

靜態(tài)功耗

ISTB

Current consume in normal operation

工作時電路內部消耗

<100uA
